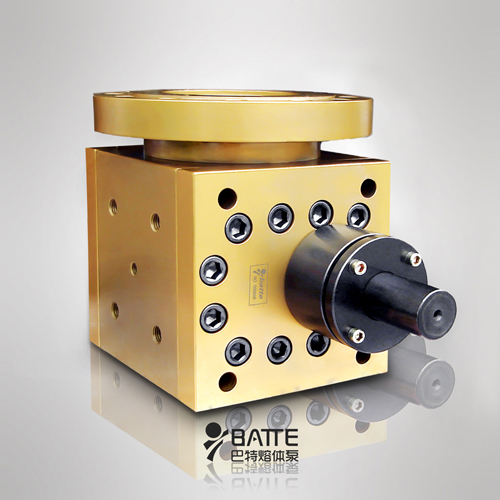

ZB-K系列釜底泵主要用于輸送真空反應器中的中高粘度的介質，吸入口大法蘭設計，在真空條件下能使高粘度介質順利吸入。主要應用于ABS、PS、PC、PET、SAN、PP、PE Bioploymers等介質。
技術參數：
泵體：不銹鋼，碳鋼，哈氏合金，蒙乃爾合金
齒輪：工具鋼，滲氨鋼，特種材料及涂層，齒形為直齒，斜齒或人字齒
滑動軸承：工具鋼，鈦鉭合金，銀鎳合金，特種材料及涂層
軸封：機械密封，填料+螺旋密封，帶沖洗液的組合密封
加熱系統：電加熱
規格/流量范圍：0.5CC-12000CC
操作參數：
粘度：≤40000Pa.s
工作溫度：≤400℃(750°F)
清洗溫度：≤450℃(850°F)
進口壓力：真空--1.5MPa
出口壓差：≤40MPa
ZB-K series bottoms pump is mainly used to transport vacuum reactor high-viscosity media, the inlet Dharma Blue design, enabling high-viscosity media smoothly under vacuum suction. Mainly used in ABS, PS, PC, PET, SAN, PP, PE Bioploymers other media.
Technical Parameters:
Pump body: stainless steel, carbon steel, Hastelloy, Monel
Gear: tool steel, ammonia seepage steel, special materials and coatings, tooth straight teeth, Helical or herringbone
Bearing: tool steel, titanium, tantalum alloy, silver-nickel alloys, special materials and coatings
Shaft seal: mechanical seals, packing + spiral seal with a combination of flushing liquid seal
Heating system: electric heating
Specifications / flow range: 0.5CC-12000CC
Operating parameters:
Viscosity: ≤40000Pa.s
Working temperature: ≤400 ℃ (750 ° F)
Cleaning temperature: ≤450 ℃ (850 ° F)
Inlet pressure: Vacuum --1.5MPa
Outlet pressure: ≤40MPa
