ZB-D系列管道泵主要用于聚合物流層中的中高粘度介質的平穩增壓輸送。加熱方式主要為導熱油加熱。適用于PET、PBT、PA、PC、PS、SAN、ABS、HIPS、PP、PE、POM等工藝中。
技術參數
泵體: 不銹鋼
齒輪: M2鋼,其他材料可指定。
滑動軸承: 高溫工具鋼，不銹鋼。
軸封: 螺旋密封 填料密封
加熱系統 : 熱媒加熱 導熱油
規格/流量范圍: 從0.5CC - 2500CC, 0.5cm3/rev - 2500cm3/rev
操作參數
粘度: ≤40000 Pas
溫度: ≤400℃
清洗溫度: ≤450℃
進口壓力: 高可達12MPa
高壓差: 可達25MPa

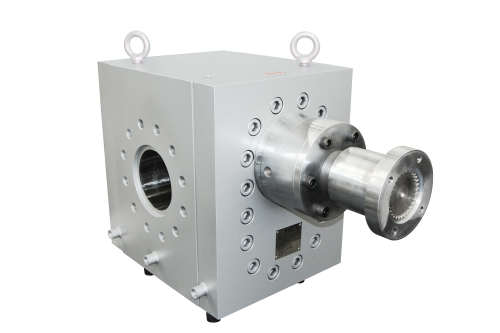

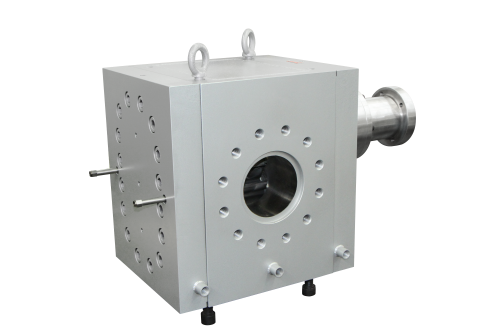

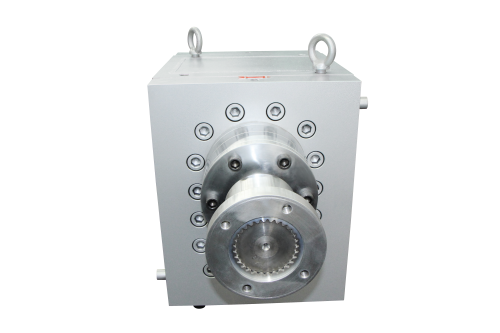

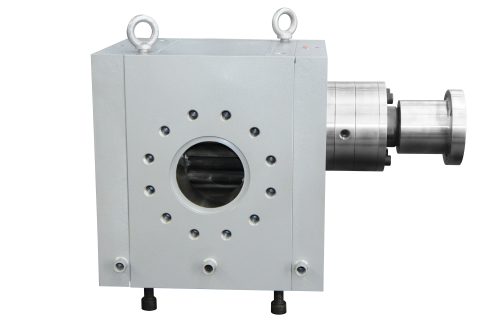

ZB-D Series Pipeline Pump
ZB-D series pipeline pump is mainly used for stabilizing, pressurization and transportation of medium or high viscosity medium from the polymer flow layer. This series of melt pump adopts conduction oil heating, and applies to PET、PBT、PA、PC、PS、SAN、ABS、HIPS、PP、PE、POM, etc.
Technical Parameter
Material for Melt Pump Body: Stainless Steel
Material for Gear: M2 Steel (Optional)
Material for Sliding Bearing: High Temperature Tool Steel or Stainless Steel.
Shaft Sealing: Spiral Sealing or Packing Sealing
Heating System: Heating Medium or Conduction Oil Heating
Model/Volume Range: 0.5CC - 2500CC, 0.5cm3/rev - 2500cm3/rev
Operating Parameter
Viscosity: ≤40000 Pas
Working Temperature: ≤400℃
Cleaning Temperature: ≤450℃
Inlet Pressure: ≤12MPa
Differential Pressure: ≤25MPa
